AG1280Q32

AG1280 is ultra-low cost and power in QFN-48 6x6 and QFN-32 4x4 0.8mm (actual 0.77mm) thinkness packaging.

The device has 1280 LUTs and maximum 40 user IOs, provides 68Kbits embedded block RAM and 10Kbits distributed RAM,

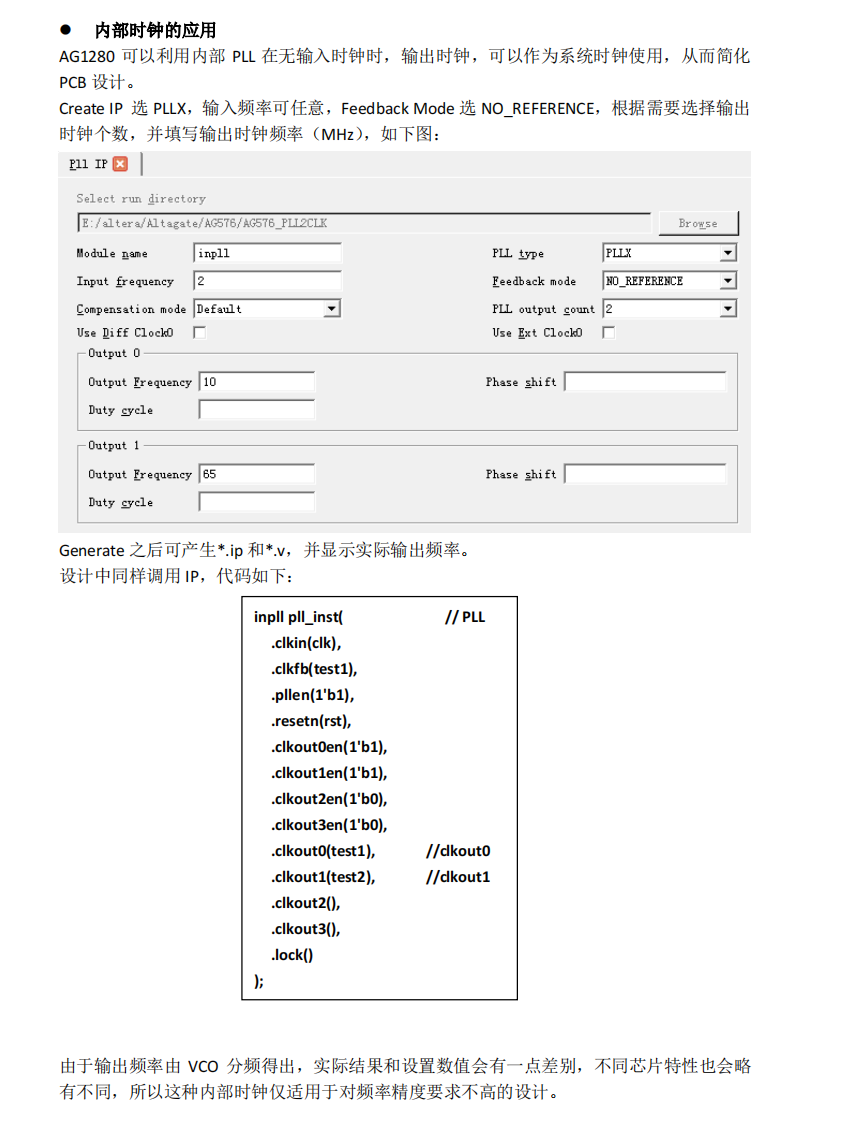

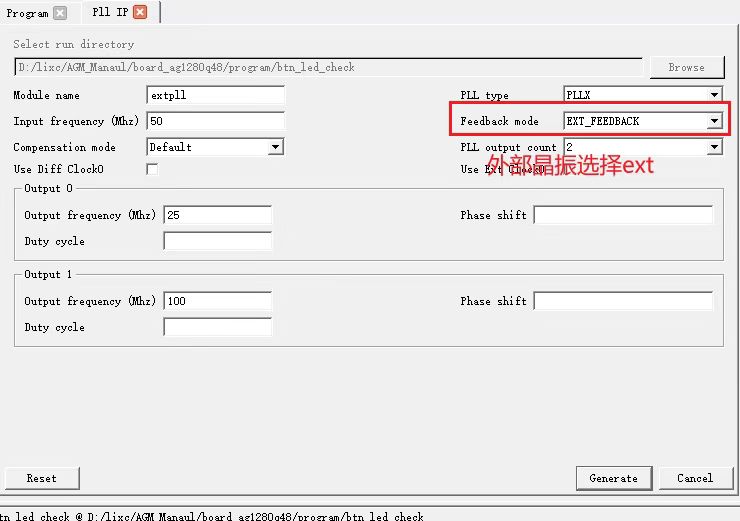

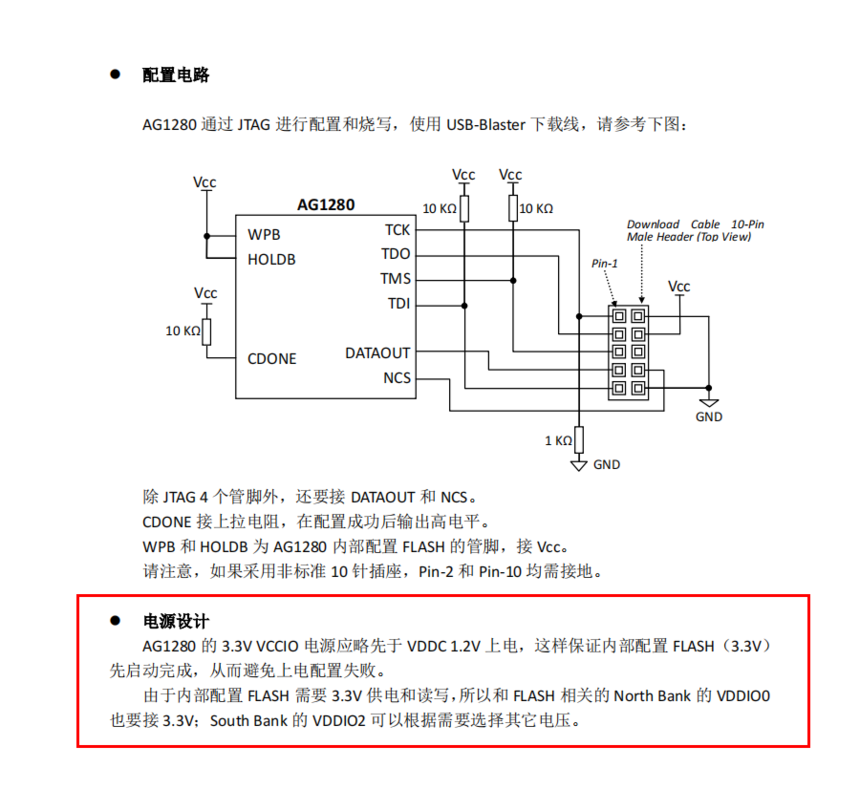

one PLL per device provide clock multiplication and phase shifting, and embedded FLASH configuration through JTAG interface,

 on-chip clock generator with wide output frequence range.

The device is Instant-on, non-volatile, multiply programmable architecture.

AG1280 selling price is highly competitive.

AG1280采用QFN-48 6x6和QFN-32 4x4 0.8mm(实际0.77mm)厚度包装，具有超低的成本和功耗。

设备有1280个lut和QFN-48（实际使用IO：26个），QFN-32（实际可用IO：12个），。

提供68Kbits的嵌入式块RAM和10Kbits的分布式RAM。

每个设备一个锁相环提供时钟乘法和相移，并通过JTAG接口嵌入FLASH配置，

具有宽输出频率范围的片上时钟发生器。

该设备是即时启动，非易失性，多重可编程架构。

AG1280的销售价格极具竞争力。

AG1280_Rev1_0.pdf

MANUAL_AG1280.pdf

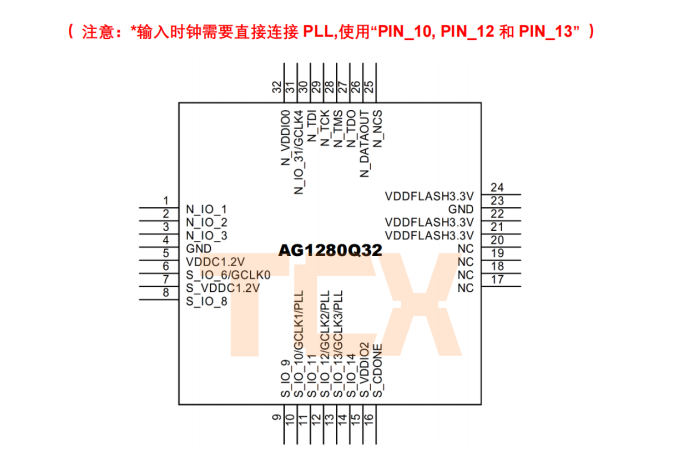

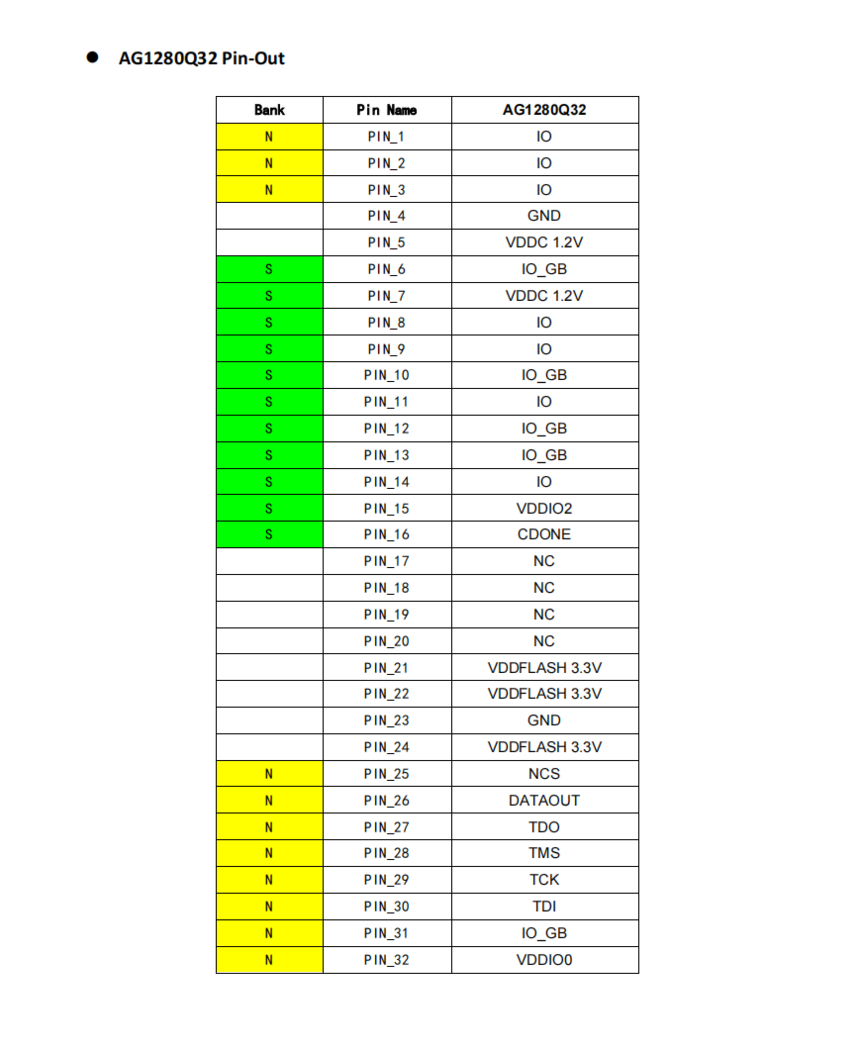

AG1280Q32_Pinout.xls
